World’s Most Advanced Wire EDM Programming

Take your Wire EDM programming to the next level with CAMWorks Wire EDM – increasing efficiency and reducing delivery times.

With CAMWorks Wire EDM, you can go from solid model to G-Code in ONE Click! Once the solid model is opened, the user clicks on the Solid to G-Code button and the system automatically:

  • Searches the part for machinable features
  • Identifies features
  • Generates the operations
  • Applies users’ preferences and settings such as wire offsets, cutting conditions, and start holes
  • Creates toolpaths
  • Posts the G-Code



Cutting-Edge Wire EDM Processing

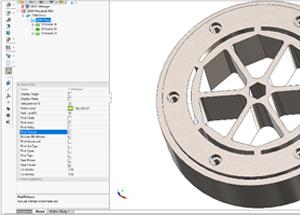

Fully integrated into SOLIDWORKS, CAMWorks Wire EDM provides a more intuitive and efficient method of generating EDM toolpaths and machine code.

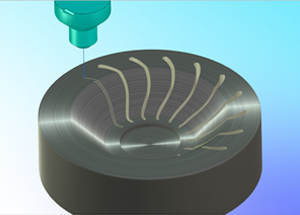

CAMWorks Wire EDM software has been designed and developed specifically for programming 2-axis through 4-axis Wire EDM CNC machines using feature-based technology, including automatic feature recognition and knowledge-based machining, to automate the Wire EDM programming process.

CAMWorks Wire EDM is available in Wire EDM Professional and Wire EDM Premium levels.


Wire EDM Premium

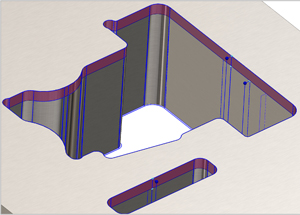

Color-Coded Feature Recognition and Cutting Condition Support

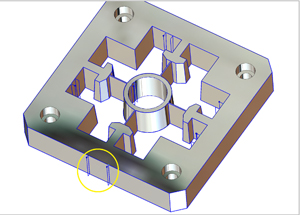

Use Decals for Entry Points, Glue Stops and Machine Stops

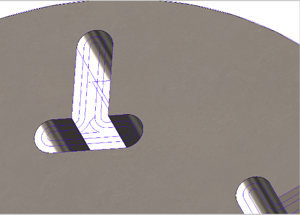

Automatic and Interactive Feature Recognition 2-Axis and 4-Axis Wire EDM Operations

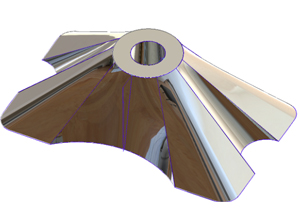

  • 2-axis and 4-axis Wire EDM features are automatically recognized on solid part models
  • Features can also be defined interactively by the user

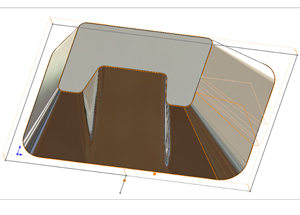

  • Create 2-axis and 4-axis In (Die/pocket) features, Outside (Punch/boss) features, and Open Profile features
  • Automatic start hole recognition using sketched circles or points
  • Sub-program support for patterned features
  • Operations automatically generate rough, tab and skim cuts
  • Operation parameters can be set, stored, and re-used to automate the programming process
  • Full control is offered through the ability to edit the individual parameters and settings for each operation
  • Automatic calculation of location and size for glue stops
  • Drag-and-drop operations into the desired order
  • Options to automatically change the order with a single command
  • Ability to output only rough cuts, only tab cuts, or both

Cutting Conditions Database

  • Cutting conditions database is associated to the current machine make and model
  • Default data in the database is based on information from the machine tool manufacturer and optionally can be modified
  • Generate code for other machines by simply selecting different machine make and model
  • Cutting conditions for the new machine are changed automatically, as needed
